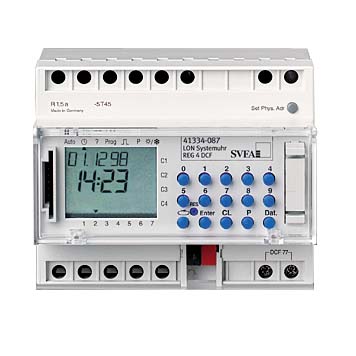

LON System Clock

REG 4 DCF
• radio-controlled timer providing four channels and 324 switching times • time synchronisation via DCF-77 receiver (art. no. 41021-089) • broadcasts the system time to all devices connected to the network • programmable time profiles including day and week schedules • switching times can be programmed via the ten-key keyboard or by use of the PC-based Obelisk Programming Set (art. no. 41083-129) • provides manual switching via keyboard • automatic clock change (summer/winter) and random program • high power reserve due to lithium cell • programmed data can be stored on Obelisk Memory Card (art. no. 41090-090) • supply voltage: AC 230 V (only if DCF-77 receiver connected) • DIN rail mounting according to EN 50 022 • width of device: approx. 105 mm (6 pitch) • software application according to LonMark profile “Scene Controller (3251)” and for direct control of four independent consumer loads The DCF-77 Receiver (art. no. 41021-089), the Obelisk Programming Set (art. no. 41083-129) and the Obelisk Memory Card (art. no. 41090-090) have to be ordered separately if required.
