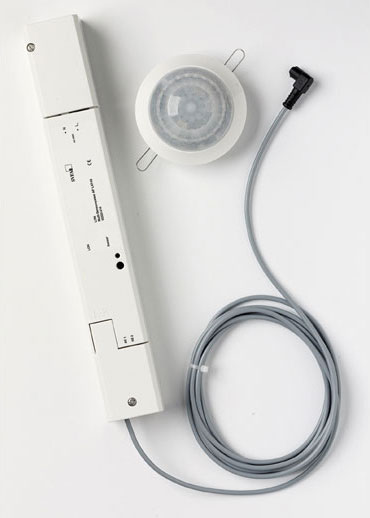

LON Multi-Sensor System

AP LAT-52
• sensor system consisting of one occupancy sensor and one basic LON module with two analog inputs • extendable to up to five occupancy sensors per basic device • analog input for connection of a brightness Sensor (art. no. 43011-196) • analog input for connection of a PT1000 temperature sensor • occupancy sensor for flush-mounting in the ceiling • circular sensor range with a diameter of approx. 8 m at 2.5 m mounting height • detection range: 360 degrees • five detection levels with 284 control segments in 71 zones • supply voltage: AC 230 V • dimensions of basic module: 40 x 280 x 28 mm (H x W x D) • diameter of flush-mounted occupancy sensor: 64.9 mm • dimensions of surface-mounted occupancy sensor: 76.7 x 28.0 mm (D x H) • software application to translate the detected movements (according to LonMark profile “Occupancy Sensor (1060)” and “Occupancy Controller (3071)”), resp. the detected brightness (LonMark profile “Light Sensor (1010)”) and temperature (LonMark profile “Temperature Sensor (1040)”) into LON messages for occupancy-dependent light, heating and cooling control
