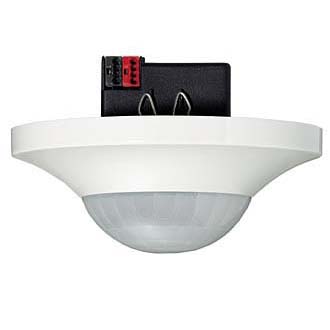

LON Multi-Sensor

LA-21
• combination of occupancy sensor and brightness sensor • flush-mounting (surface-mounting in combination with Surface Mounting Box, art. no. 42020-106) • circular sensor range with a diameter of approx. 14 m at 2.5 m mounting height • detection range: 360 degrees • several detection levels with over all 544 control segments in 136 zones • brightness sensor for daylight-dependent light control, sensor range: 10 .. 1,000 Lux • dimensions of surface-mounted sensor: 105 x 42.6 mm (D x H) • software application to translate the detected movements (according to LonMatk profile “Occupancy Sensor (1060)” and “Occupancy Controller (3071)”), resp. the detected brightness (LonMark profile “Light Sensor (1010)”) into LON messages for occupancy-dependent light or sunblind control The Surface Mounting Box (art no. 42020-106) has to be ordered separately if required.
