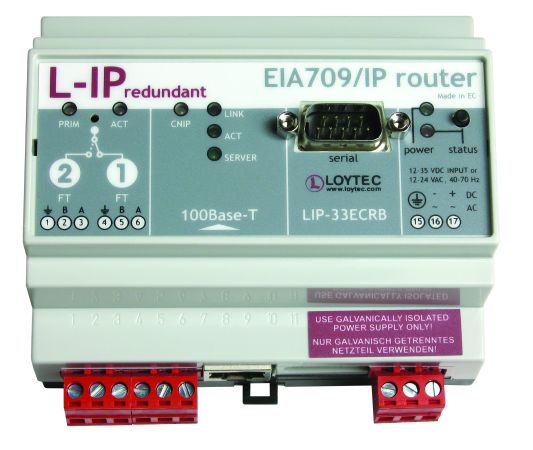

Redundant LIP Ethernet/LON Router

Redundant Ethernet/IP Router for ANSI/EIA-709 Networks,
1x100baseT, 2xFT-10, Supports configured router mode, Full redundancy with two L-IP redundant EIA-709/IP routers in parallel for the IP-channel and the ANSI/EIA-709 channel, Device redundancy by mutual monitoring of paired L-IP redundant, Monitoring the TP/FT-10 channel (ring structure) and detection of a broken cable, Communication on the TP/FT-10 channel is sustained in case of a broken cable, Nodes on the TP/FT-10 channel are monitored, Messages and alarms are presented via SNVT_state_64 (165) and LonMark-Alarming via the Node Object, LNS Plug-In for an easy configuration, Built-in Configuration Server, Built-in Diagnostics, Supports remote LPA operation with LPA-IP, 100% compatible with LNS 3.x applications and CARE 5/7 using NIC852, DIN-rail (EN 50 022) or wall mountable, Supply Voltage: AC 12..24V; DC 12..35V, Dimensions: 105x86x60 (L x W x H in mm)



More information can be found on this link
